DC BRUSHLESS FAN 9225 SERIES

Size 92 * 92 * 25 mm.

Airflow 45 - 25 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 98 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

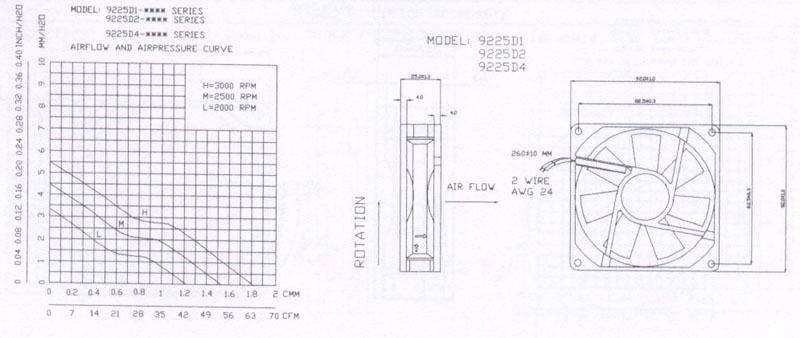

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M922512H 12 0.17 3000 6-13.8 1.27 45 5.8 0.23 34
M922512M 12 0.12 2500 6-13.8 0.99 35 4.0 0.16 30
M922512L 12 0.08 2000 6-13.8 0.71 25 2.5 0.10 24
B922512H 12 0.17 3000 6-13.8 1.27 45 5.8 0.23 34
B922512M 12 0.12 2500 6-13.8 0.99 35 4.0 0.16 30
B922512L 12 0.08 2000 6-13.8 0.71 25 2.5 0.10 24
M922524H 24 0.12 3000 16-28 1.27 45 5.8 0.23 34
M922524M 24 0.10 2500 16-28 0.99 35 4.0 0.16 30
M922524L 24 0.08 2000 16-28 0.71 25 2.5 0.10 24
B922524H 24 0.12 3000 16-28 1.27 45 5.8 0.23 34
B922524M 24 0.10 2500 16-28 0.99 35 4.0 0.16 30
B922524L 24 0.08 2000 16-28 0.71 25 2.5 0.10 24
M922548H 48 0.08 3000 36-56 1.27 45 5.8 0.23 34
M922548M 48 0.06 2500 36-56 0.99 35 4.0 0.16 30
M922548L 48 0.04 2000 36-56 0.71 25 2.5 0.10 24
B922548H 48 0.08 3000 36-56 1.27 45 5.8 0.23 34
B922548M 48 0.06 2500 36-56 0.99 35 4.0 0.16 30
B922548L 48 0.04 2000 36-56 0.71 25 2.5 0.10 24
