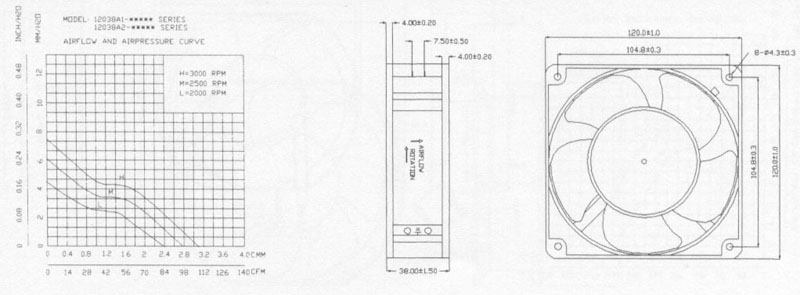

DC BRUSHLESS FAN 12038 SERIES

Size 120 * 120 * 38 mm.

Airflow 157 - 118 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 298 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M1203812H 12 0.60 3200 6-13.8 4.45 157 7.9 0.31 47
M1203812M 12 0.48 2700 6-13.8 3.77 133 7.1 0.28 42
M1203812L 12 0.34 2400 6-13.8 3.34 118 6.1 0.24 37
B1203812H 12 0.60 3200 6-13.8 4.45 157 7.9 0.31 47
B1203812M 12 0.48 2700 6-13.8 3.77 133 7.1 0.28 42
B1203812L 12 0.34 2400 6-13.8 3.34 118 6.1 0.24 37
M1203824H 24 0.36 3200 16-28 4.45 157 7.9 0.31 47
M1203824M 24 0.30 2700 16-28 3.77 133 7.1 0.28 42
M1203824L 24 0.26 2400 16-28 3.34 118 6.1 0.24 37
B1203824H 24 0.36 3200 16-28 4.45 157 7.9 0.31 47
B1203824M 24 0.30 2700 16-28 3.77 133 7.1 0.28 42
B1203824L 24 0.26 2400 16-28 3.34 118 6.1 0.24 37
M1203848H 48 0.16 3200 36-56 4.45 157 7.9 0.31 47
M1203848M 48 0.14 2700 36-56 3.77 133 7.1 0.28 42
M1203848L 48 0.12 2400 36-56 3.34 118 6.1 0.24 37
B1203848H 48 0.16 3200 36-56 4.45 157 7.9 0.31 47
B1203848M 48 0.14 2700 36-56 3.77 133 7.1 0.28 42
B1203848L 48 0.12 2400 36-56 3.34 118 6.1 0.24 37
