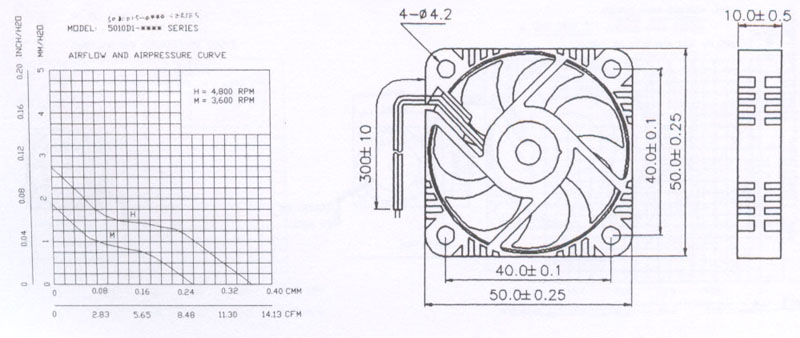

DC BRUSHLESS FAN 5010 SERIES

Size 50 * 50 * 10 mm.

Airflow 9.6 - 7.0 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 20 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M501005H 5 0.11 4800 4-8 0.272 9.6 2.8 0.110 26
M501005M 5 0.09 3300 4-8 0.227 8.0 1.9 0.075 22
B501005H 5 0.11 4800 4-8 0.272 9.6 2.8 0.110 26
B501005M 5 0.09 3300 4-8 0.227 8.0 1.9 0.075 22
M501012H 12 0.08 4800 6-13.8 0.272 9.6 2.8 0.110 26
M501012M 12 0.06 3300 6-13.8 0.227 8.0 1.9 0.075 22
B501012H 12 0.08 4800 6-13.8 0.272 9.6 2.8 0.110 26
B501012M 12 0.06 3300 6-13.8 0.227 8.0 1.9 0.075 22
