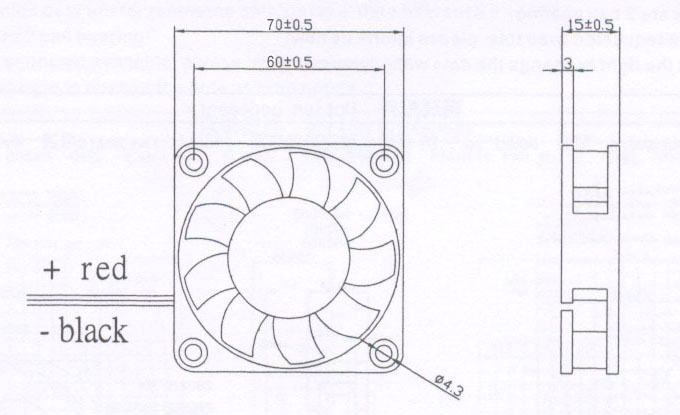

DC BRUSHLESS FAN 7015 SERIES

Size 70 * 70 * 15 mm.

Airflow 17.8 - 14.8 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 48 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M701505H 5 0.24 4000 4-8 0.674 23.8 5.5 0.215 30
M701505M 5 0.22 3500 4-8 0.507 17.9 4.8 0.187 28
M701505L 5 0.20 3000 4-8 0.439 15.5 3.9 0.152 26
B701505H 5 0.24 4000 4-8 0.674 23.8 5.5 0.215 30
B701505M 5 0.22 3500 4-8 0.507 17.9 4.8 0.187 28
B701505L 5 0.20 3000 4-8 0.439 15.5 3.9 0.152 26
M701512H 12 0.20 4000 6-13.8 0.674 23.8 5.5 0.215 30
M701512M 12 0.18 3500 6-13.8 0.507 17.9 4.8 0.187 28
M701512L 12 0.14 3000 6-13.8 0.439 15.5 3.9 0.152 26
B701512H 12 0.20 4000 6-13.8 0.674 23.8 5.5 0.215 30
B701512M 12 0.18 3500 6-13.8 0.507 17.9 4.8 0.187 28
B701512L 12 0.14 3000 6-13.8 0.439 15.5 3.9 0.152 26
