DC BRUSHLESS FAN 4020 SERIES

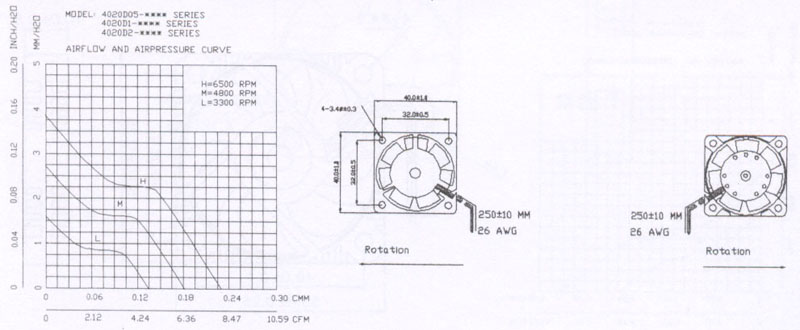

Size 40 * 40 * 20 mm.

Airflow 7.5 - 4.4 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 29 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M402005H 5 0.11 6500 4-8 0.212 7.5 4.3 0.169 33
M402005M 5 0.09 4800 4-8 0.167 5.9 3.4 0.134 28
M402005L 5 0.07 3300 4-8 0.125 4.4 2.8 0.110 24
B402005H 5 0.11 6500 4-8 0.212 7.5 4.3 0.169 33
B402005M 5 0.09 4800 4-8 0.167 5.9 3.4 0.134 28
B402005L 5 0.07 3300 4-8 0.125 4.4 2.8 0.110 24
M402012H 12 0.07 6500 6-13.8 0.212 7.5 4.3 0.169 33
M402012M 12 0.06 4800 6-13.8 0.167 5.9 3.4 0.134 28
M402012L 12 0.05 3300 6-13.8 0.125 4.4 2.8 0.110 24
B402012H 12 0.07 6500 6-13.8 0.212 7.5 4.3 0.169 33
B402012M 12 0.06 4800 6-13.8 0.167 5.9 3.4 0.134 28
B402012L 12 0.05 3300 6-13.8 0.125 4.4 2.8 0.110 24
