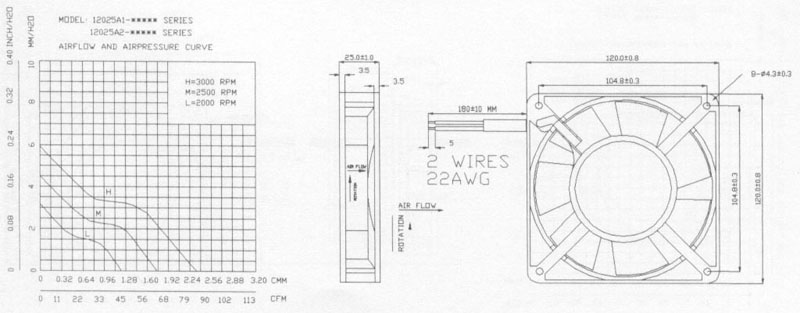

DC BRUSHLESS FAN 12025 SERIES

Size 120 * 120 * 25 mm.

Airflow 99 - 66 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 180 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M1202512H 12 0.35 2500 6-13.8 2.80 99 6.6 0.26 43
M1202512M 12 0.30 2000 6-13.8 2.32 82 5.6 0.22 37
M1202512L 12 0.25 1500 6-13.8 1.87 66 4.6 0.18 28
B1202512H 12 0.35 2500 6-13.8 2.80 99 6.6 0.26 43
B1202512M 12 0.30 2000 6-13.8 2.32 82 5.6 0.22 37
B1202512L 12 0.25 1500 6-13.8 1.87 66 4.6 0.18 28
M1202524H 24 0.17 2500 16-28 2.80 99 6.6 0.26 43
M1202524M 24 0.15 2000 16-28 2.32 82 5.6 0.22 37
M1202524L 24 0.12 1500 16-28 1.87 66 4.6 0.18 28
B1202524H 24 0.17 2500 16-28 2.80 99 6.6 0.26 43
B1202524M 24 0.15 2000 16-28 2.32 82 5.6 0.22 37
B1202524L 24 0.12 1500 16-28 1.87 66 4.6 0.18 28
M1202548H 48 0.12 2500 36-56 2.80 99 6.6 0.26 43
M1202548M 48 0.10 2000 36-56 2.32 82 5.6 0.22 37
M1202548L 48 0.07 1500 36-56 1.87 66 4.6 0.18 28
B1202548H 48 0.12 2500 36-56 2.80 99 6.6 0.26 43
B1202548M 48 0.10 2000 36-56 2.32 82 5.6 0.22 37
B1202548L 48 0.07 1500 36-56 1.87 66 4.6 0.18 28
