DC BRUSHLESS FAN 8020 SERIES

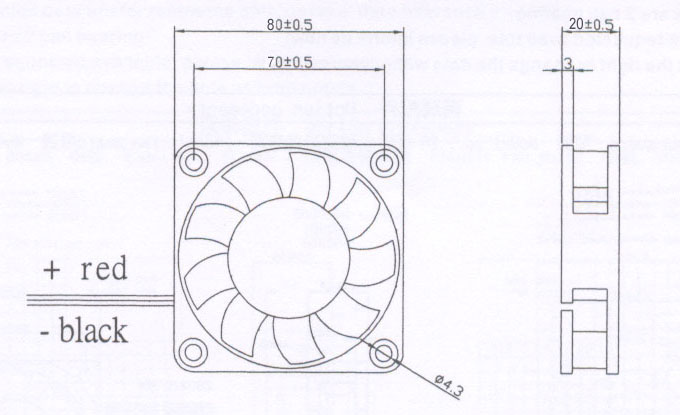

Size 80 * 80 * 20 mm.

Airflow 38.6 - 21.9 CFM.
Motor Brushless DC montor.
Frame
(Houseing)		 PBT+ 30% fiber glass. Black color.
UL94V-0
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 26AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 sec. at 800 VAC 50/60 Hz.
between lead wire (+) and frame.
Net Weight 79 grams.
Option
Function		 1, AL: Alarm singal output
2, HS: Hall singal output
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VDC		 RATED
AMP		 RATED
R.P.M.		 VOLTAGE
RANGE
VDC		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M802005H 5 0.30 3000 4-8 1.093 38.6 7.9 0.312 31
M802005M 5 0.28 2500 4-8 0.773 27.3 7.3 0.286 29
M802005L 5 0.26 2000 4-8 0.620 21.9 6.3 0.248 27
B802005H 5 0.30 3000 4-8 1.093 38.6 7.9 0.312 31
B802005M 5 0.28 2500 4-8 0.773 27.3 7.3 0.286 29
B802005L 5 0.26 2000 4-8 0.620 21.9 6.3 0.248 27
M802012H 12 0.16 3000 6-13.8 1.093 38.6 7.9 0.312 31
M802012M 12 0.14 2500 6-13.8 0.773 27.3 7.3 0.286 29
M802012L 12 0.12 2000 6-13.8 0.620 21.9 6.3 0.248 27
B802012H 12 0.16 3000 6-13.8 1.093 38.6 7.9 0.312 31
B802012M 12 0.14 2500 6-13.8 0.773 27.3 7.3 0.286 29
B802012L 12 0.12 2000 6-13.8 0.620 21.9 6.3 0.248 27
