AC AXIAL FAN 8038 SERIES

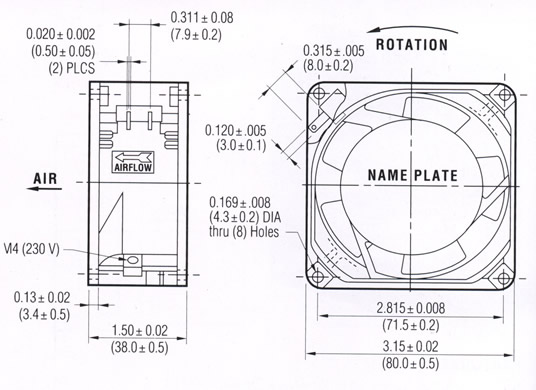

Size 80 * 80 * 38 mm.

Airflow 31 - 17 CFM.
Motor Shaded pole, impendance protected.
Frame
(Houseing)		 Aluminum die-cast.
AP: Painted black. AN: Natural
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 22AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 min at 1,500 VAC,
50/60 Hz
Net Weight 290 grams ( 0.82 pounds)
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VAC		 VOLTAGE
RANGE
VAC		 FREQ-
HZ		 RATED
AMP		 RATED
R.P.M.		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M8038115H 115 80-120 60 0.12 3000 1.00 31 4.6 0.18 29
M8038115M 115 80-120 60 0.09 2400 0.80 23 3.8 0.15 24
M8038115L 115 80-120 60 0.05 1600 0.62 17 2.5 0.10 20
B8038115H 115 80-120 60 0.12 3000 1.00 31 4.6 0.18 29
B8038115M 115 80-120 60 0.09 2400 0.80 23 3.8 0.15 24
B8038115L 115 80-120 60 0.05 1600 0.62 17 2.5 0.10 20
M8038230H

230

 160-260

50

 0.06 3000 1.00 31 4.6 0.18 29
M8038230M 230 160-260

50

 0.05 2400 0.80 23 3.8 0.15 24
M8038230L

230

 160-260

50

 0.03 1600 0.62 17 2.5 0.10 20
B8038230H 230 160-260

50

 0.06 3000 1.00 31 4.6 0.18 29
B8038230M 230 160-260

50

 0.05 2400 0.80 23 3.8 0.15 24
B8038230L 230   160-260

50

 0.03 1600 0.62 17 2.5 0.10 20
